R&G offers a wide range of metallic filtration and separation elements which are used for numerous industrial and process applications, including:
    ● Food and Beverage
    ● Agriculture and Irrigation
    ● Pharmaceutical and Chemical
    ● Petrochemical process
    ● Other industrial process

Currently, R&G provides below products:
    ● Candle filter (pleated filter, sintered fiber felt filter)
    ● Filter Pack
    ● Filter Plate and Polymer Leaf Filter
    ● Strainer Tube, Basket, Cone and Dome
    ● Test Sieve
    ● Wedge Wire Filter
    ● Other custom made elements based on your requirements

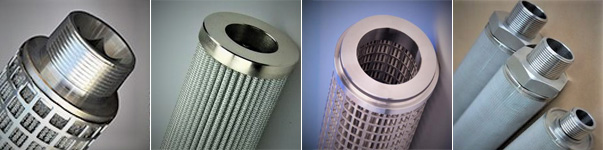

CANDLE FILTER


Candle Filters are available in both forms: cylindrical and pleated, also available with both sintered fiber and wire mesh. Based on your application, R&G offers custom designed housing or inner supporting pipe to fit your need.

Characteristics:

    ● Durable in low or high temperature or harsh environment
    ● cleanable, long filter life
    ● homogeneous and balanced filtration feature from rating 3 to 100 microns
    ● Pleated candle filter offers larger filtration area

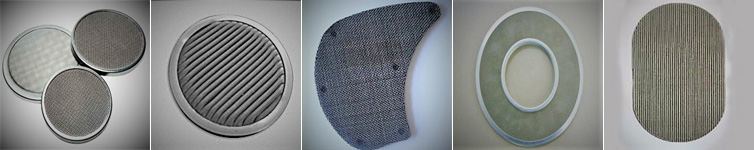

FILTER PACK


Filter Packs are mainly made of stainless steel. Depending on different applications, R&G offers single layer form, multi-layer form, sintered, multi-spots welded, pleated, edge covered or non-covered, round, oval and other desired shapes.

Characteristics:

    ● controlled porosity ensures balanced filtration feature, rating from 3-100 microns
    ● cleanable, long filter life
    ● custom designed structures available for high temperature and high pressure application
    ● corrosion resistant

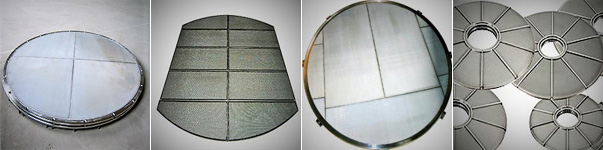

FILTER PLATE AND POLYMER LEAF FILTER


Filter Plate are available in two type of forms: can be disassembled and integral, and filter plate usually uses multi-layer sintered wire mesh as filter media. Filter media is either welded with supporting metal to form the plate, or filter media is sintered together with perforated metal. Filter plate is an ideal fit for the all-in-one process of filtrating/washing/drying.

Polymer Leaf Filter is typically used for high viscosity polymer filtration element, the filter media are choices from stainless steel sintered fiber and sintered wire mesh.

Characteristics:

    ● controlled porosity ensures balanced filtration feature, rating from 3-300 microns
    ● cleanable, long filter life
    ● custom designed structures available
    ● corrosion resistant

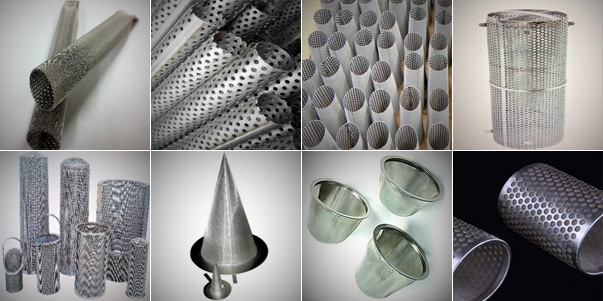

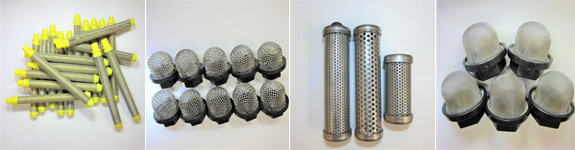

STRAINER TUBE, BASKET, CONE AND DOME


This series of products can be used as supporting frames only, or depends on your applications, attaching suitable wire mesh filter media inside.

Characteristics:

    ● cleanable, long usage life
    ● corrosion resistant
    ● smooth, clean and polished surface with securely welded structure
    ● custom designed shape and size

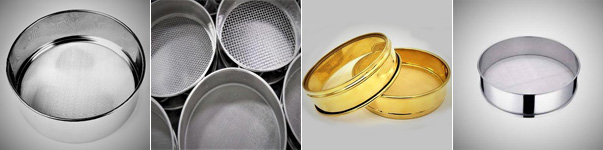

TEST SIEVE


Test sieve are available with frames and mesh screen assembled of stainless steel, brass or combination of brass frame and stainless steel wire mesh, used for a wide range of solid/powder separation. We offer diameter 3”-18”, half-full height, sieve mesh size from 20 microns to more than 120mm, or custom design.

Characteristics:

    ● evenly tensioned mesh, precise aperture
    ● maximum stable frame structure, smooth, polished with safe edge
    ● corrosion resistant
    ● cleanable, long usage life

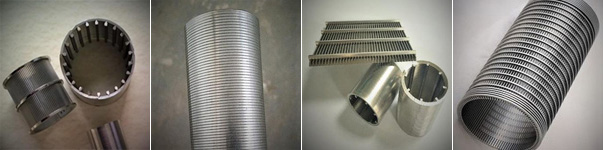

WEDGE WIRE FILTER


Wedge Wire Filters are generally made with two basic components: stainless steel wedge wire and stainless steel supporting rod, some reinforced structures require extra layer of support inside, such as perforated metal tube, welded X-shape brace or spiral rod. Besides standard external circumferential construction, now more constructions are available for different applications: internal circumferential, external axial, internal axial, etc.

Characteristics:

    ● available in different shapes: tube, basket, flat panel, sieve bend
    ● slot opening from 0.002”
    ● backwashing enables almost endless cleanability
    ● high strength and extended usage life
    ● corrosion resistant, especially suitable for harsh environment
