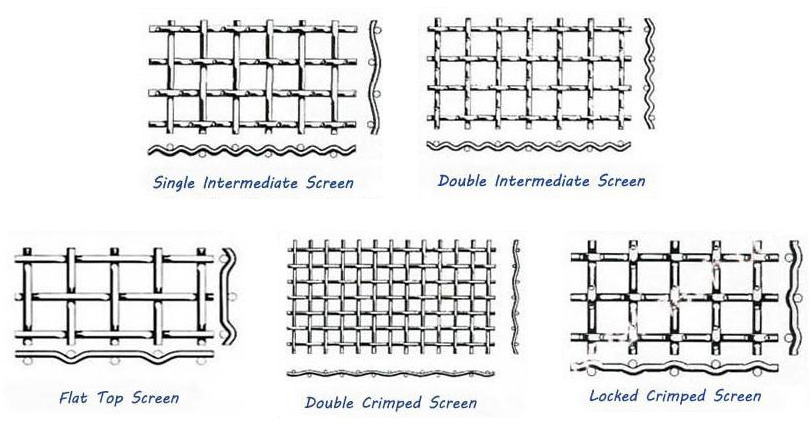

Pre-crimped woven wire mesh uses wires that is crimped prior to weaving. The purpose of crimping the warp and/or weft wires is to limit the movement of wires and provide stability and consistency during use, especially useful for larger spaced wire mesh.
R & G’s pre-crimped wire mesh has been used in:
architectural and industrial design
agricultural and food industry
mining and construction
gardening and protection
The following options are our typical pre-crimped wire mesh:
| Mesh Count per Inch | Wire Diameter (Inch) | Aperture Size (Inch) |
|---|---|---|
| Large Opening | .157 | 1.600 |
| Large Opening | .157 | 1.200 |
| Large Opening | .157 | 1.000 |
| Large Opening | .126 | 1.000 |
| Large Opening | .126 | 0.800 |
| Large Opening | .080 | 0.600 |
| Large Opening | .080 | 0.500 |
| 2 | .080 | 0.420 |
| 2.5 | .080 | 0.320 |
| 3 | .071 | 0.262 |
| 3 | .063 | 0.270 |
| 4 | .063 | 0.187 |
| 4.5 | .063 | 0.159 |
| 5.5 | .063 | 0.119 |
| 3.5 | .055 | 0.231 |
| 4 | .055 | 0.195 |
| 4.5 | .055 | 0.167 |
| 2.5 | .047 | 0.353 |
| 3 | .047 | 0.286 |
| 3.5 | .047 | 0.239 |
